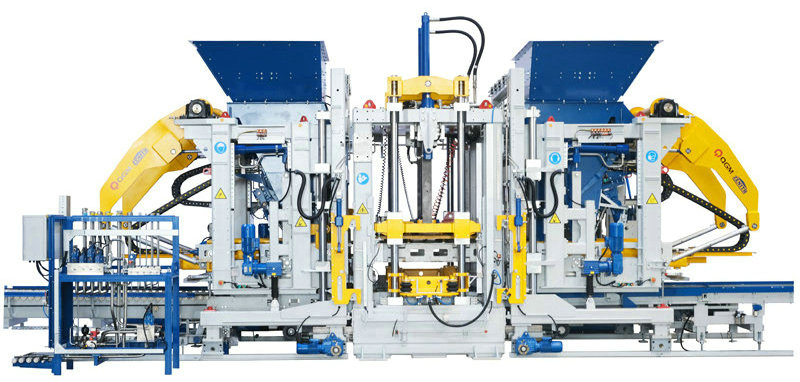

ZN2000C Concrete Block Machine

ZN2000C Concrete Block Machine ndi mtundu wodzipangira nokha. Amadziwika ndi nzeru zapamwamba komanso zodzichitira zokha, ndipo amagwiritsa ntchito mokwanira umisiri waukadaulo wapamwamba kwambiri monga digito ya digito ndi chidziwitso, chomwe chimagwiritsidwa ntchito kwambiri pomanga matauni atsopano ndi mizinda ya siponji.

Mawonekedwe:

Gome lakugwedera lapawiri, ma servo motors asanu ndi atatu (ngati mukufuna) Zida zapamwamba

Kumanga modulitsa kuti akonze mosavuta Mitundu yosiyanasiyana ya njerwa zopangidwa

Mphamvu zapamwamba, zokolola zapamwamba

Pallet kukula 1400x1400/1300mm

Kupanga dera 1320x1350/1250mm

Mankhwala kutalika 40-500mm

Chiwerengero cha midadada Njerwa zopanda kanthu: midadada 18/nkhungu (390x190x190mm)

Njerwa zokhazikika: midadada 105 / nkhungu (240x115x53mm)

Njerwa zamsewu: 66 midadada/ nkhungu (200x100x60mm)

Kukula kwazida Pafupifupi. 10,000

Pafupifupi. 4,700

Pafupifupi. 3,400

Dongosolo logwedezeka Mphamvu yayikulu yosangalatsa ya tebulo logwedezeka: 200/kN

Mphamvu yayikulu yosangalatsa ya mutu wa atolankhani: 40/kN

Magawo amagetsi Mphamvu zonse (zofotokozera): 231/kW

Chithunzi chojambula cha zitsanzo za njerwa zopangidwa ndi zida

Ubwino Waukadaulo

1. Mapangidwe apamwamba kwambiri amtundu waku Germany

mainframe chimango utenga mkulu-mphamvu yowotcherera chimango kapangidwe ndi luso Zenit a patented, amene welded ndi makonda chigawo chapadera zitsulo, ndi wololera kamangidwe, ngakhale ndi kukongola kowotcherera, ndi chimango akukumana ndi ukalamba kugwedera mankhwala kuonetsetsa apamwamba ndi kukhazikika mkulu wa chimango. The patsogolo structural kamangidwe kamapangitsa mainframe expandable, ndi mbali nkhungu kutsegula ndi kutseka ntchito, pachimake m'zigawo (bolodi) ntchito, polystyrene bolodi implantation ntchito, etc. akhoza kuwonjezeredwa pambuyo pake.

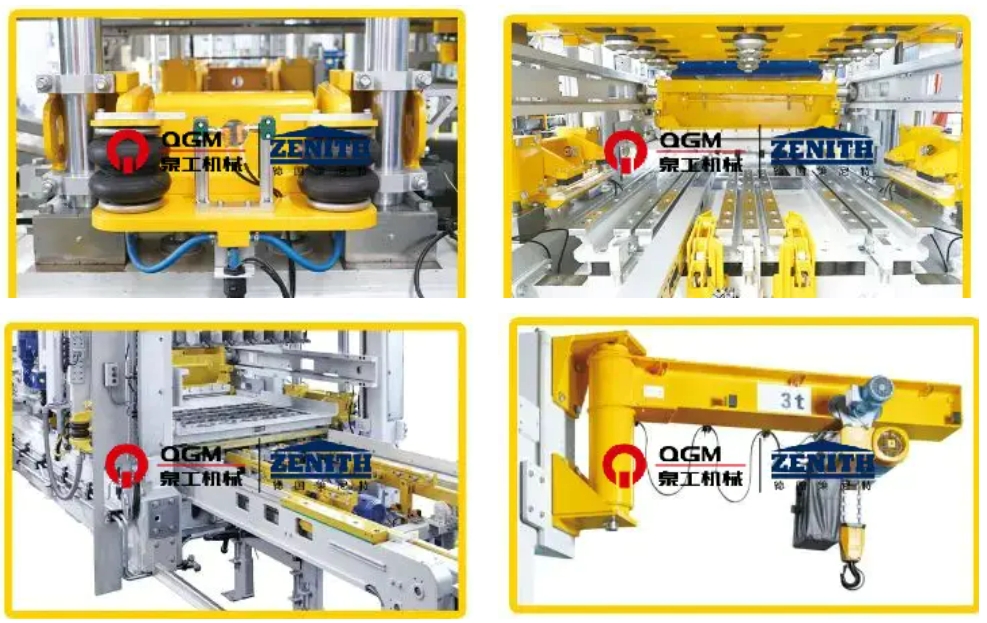

2.Automatic mofulumira nkhungu kusintha dongosolo

Pamene nkhungu imasamutsidwa kumalo osungira, makina ake okweza amazindikira kusintha kwa nkhungu pazida zosinthira mwachangu. Zoumba zam'mwamba ndi zam'munsi zimangomangidwa ndi pneumatically, zomwe zimakhala zotetezeka, zogwira mtima, zosavuta kugwiritsa ntchito komanso zosavuta kuzisamalira. Zimaphatikizapo:

Chipangizo cha pneumatic mold clamping: Chimapangidwa makamaka ndi nkhungu ndi ndodo za pneumatic clamping mbali zonse ziwiri, zomwe zimathandizira kupukuta ndi kukonza zisankho ndikunyowetsa pamene makina ogwiritsira ntchito amatha kugwedezeka ndi kugwedezeka kwakukulu, kuti akwaniritse bwino kugwedezeka ndikutalikitsa moyo wautumiki wa nkhungu.

Pneumatic indenter locking chipangizo: indenter imakhazikitsidwa ndi chipangizo chotchinga chokhala ndi airbag, chomwe chimatha kusintha mosavuta komanso mwachangu, kufupikitsa nthawi yosinthira nkhungu ndikuyika, ndikuwonetsetsa kuti chimango cham'munsi chimakhazikika komanso chapamwamba.

Chipangizo chamagetsi chamagetsi chamagetsi: Chipangizo chopangira nkhungu chimagwiritsidwa ntchito kukhazikitsa zitsulo mu makina akuluakulu ndi kudyetsa ndi kuchotsa nkhungu kuchokera pamakina pogwiritsa ntchito chingwe chamagetsi chamagetsi, chomwe chingagwiritsidwe ntchito pazitsulo zambiri pamsika, ndipo mabatani apadera a nkhungu angagwiritsidwe ntchito pazitsulo zapadera.

Chipangizo Chosinthira Mold: Choyikidwa pa chimango cha makina akuluakulu, chimagwiritsidwa ntchito kukweza ndi kukweza zojambulajambula posintha zojambulajambula, zokhala ndi chingwe chamagetsi ndi chipangizo choyendera magetsi.

3. Njira zopangira

4. "Ultra-dynamic" servo vibration system:

Ukadaulo wa "Ultra-dynamic" servo vibration ndi mtundu waukadaulo wapamwamba, wodzisintha wokhazikika womwe umapangidwira makina anjerwa; injini ya servo imatha kuyankha mwachangu mu nthawi yaifupi kwambiri, pozindikira kugwedezeka kwapamwamba kwambiri, kuchepetsa kuchuluka kwa simenti yogwiritsidwa ntchito ndikufupikitsa kuzungulira kwa kupanga, kupanga zinthu zopangidwa ndi konkriti zapamwamba kwambiri; dongosolo kugwedera akhoza flexibly agwirizane ndi zosowa zosiyanasiyana konkire mankhwala. Makina a servo amatha kuyankha mwachangu munthawi yaifupi kwambiri kuti azindikire kugwedezeka kwapamwamba kwambiri, komwe kumatha kuchepetsa kuchuluka kwa simenti, kufupikitsa kuzungulira kwa kupanga, ndikupanga zinthu zophatikizika kwambiri za konkriti; dongosolo kugwedera akhoza flexibility ndinazolowera zofuna kupanga zinthu zosiyanasiyana konkire.

Magawo 8 ogwedera okhala ndi makina okhazikika omwe amakhazikitsidwa payekha ndi ma servo 8;

8 ma servo motors, payekhapayekha wokwera panja kugwedera kudzipatula matabwa a zothandizira galimoto;

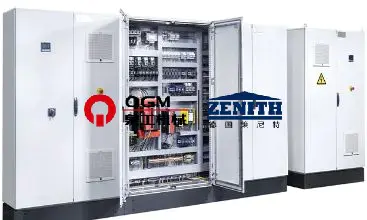

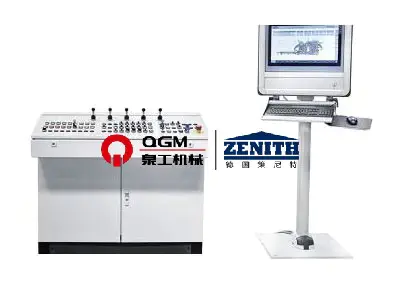

5. Dongosolo lolondola la servo control

Kupyolera mu ndemanga ya chizindikiro, kuwongolera gawo ndi liwiro la kugwedezeka, kuwongolera koyenda kolumikizana, kuyimilira kothamanga kwambiri, kumatha kumalizidwa munthawi yochepa kugwedezeka ndikuchotsa kugwedezeka, kuti zithandizire kufupikitsa kuzungulira ndikuwumba, komanso kuwongolera bwino. Kupyolera mu udindo ndi liwiro iwiri chatsekedwa kuzungulira, kulamulira mphamvu yokoka amangochita mu malangizo ofukula, kuonjezera ogwira mapokoso mphamvu, ndipo nthawi yomweyo kupewa yopingasa malemeredwe mphamvu kuwonongeka kwa makina, kutalikitsa moyo utumiki wa zida, ndi kukhala wokhoza kupanga zoikamo zosiyanasiyana kwa zofunika zosiyanasiyana mankhwala, ndi kupanga mankhwala apamwamba.

Mutu wa atolankhani, chimango cha nkhungu, galimoto yophatikizika ndi galimoto yansalu imayendetsedwa ndi valavu yolumikizana ndi spool, yomwe imakhala ndi nthawi yoyankha mwachangu; njira yotseka yotsekera ya sensa / encoder-PLC-proportional directional directional valve-cylinder imatengedwa, zomwe zimapangitsa kuti kayendetsedwe kake kakhale kolondola, ndi ntchito ya silinda mofulumira komanso yokhazikika; malo opangira ma hydraulic amatenga pampu ya pistoni yosinthika, yomwe siyitulutsa mafuta opanikizika ndikutsitsa pampu pomwe makina opangira ma hydraulic afika pakukakamiza kochepetsa kugwiritsa ntchito mphamvu; ma hydraulic station amatenga accumulator othandizira mafuta, omwe amachepetsa kugwiritsa ntchito mphamvu; ndi ma hydraulic station amatenga accumulator othandizira mafuta, omwe amachepetsa kugwiritsa ntchito mphamvu ndikuchepetsa kugwiritsa ntchito mphamvu. Malo opangira ma hydraulic amatenga mafuta owonjezera a accumulator, omwe angagwiritsidwe ntchito pazinthu zingapo nthawi imodzi, ndipo kupanikizika kwa ma hydraulic system ndikokhazikika; makina a hydraulic ali ndi masensa opanikizika, omwe amatha kuwonetsedwa pagawo la opaleshoni kuti muwone mosavuta; makina opangira ma hydraulic ali ndi masensa a kutentha, ozizira ndi otentha, omwe amatha kuyendetsa bwino kutentha kwa mafuta, kuti mafuta a hydraulic akhale ndi ntchito yabwino.

6. Machitidwe a Hydraulic
